渲染原理及diff算法

vue3组件初始化过程

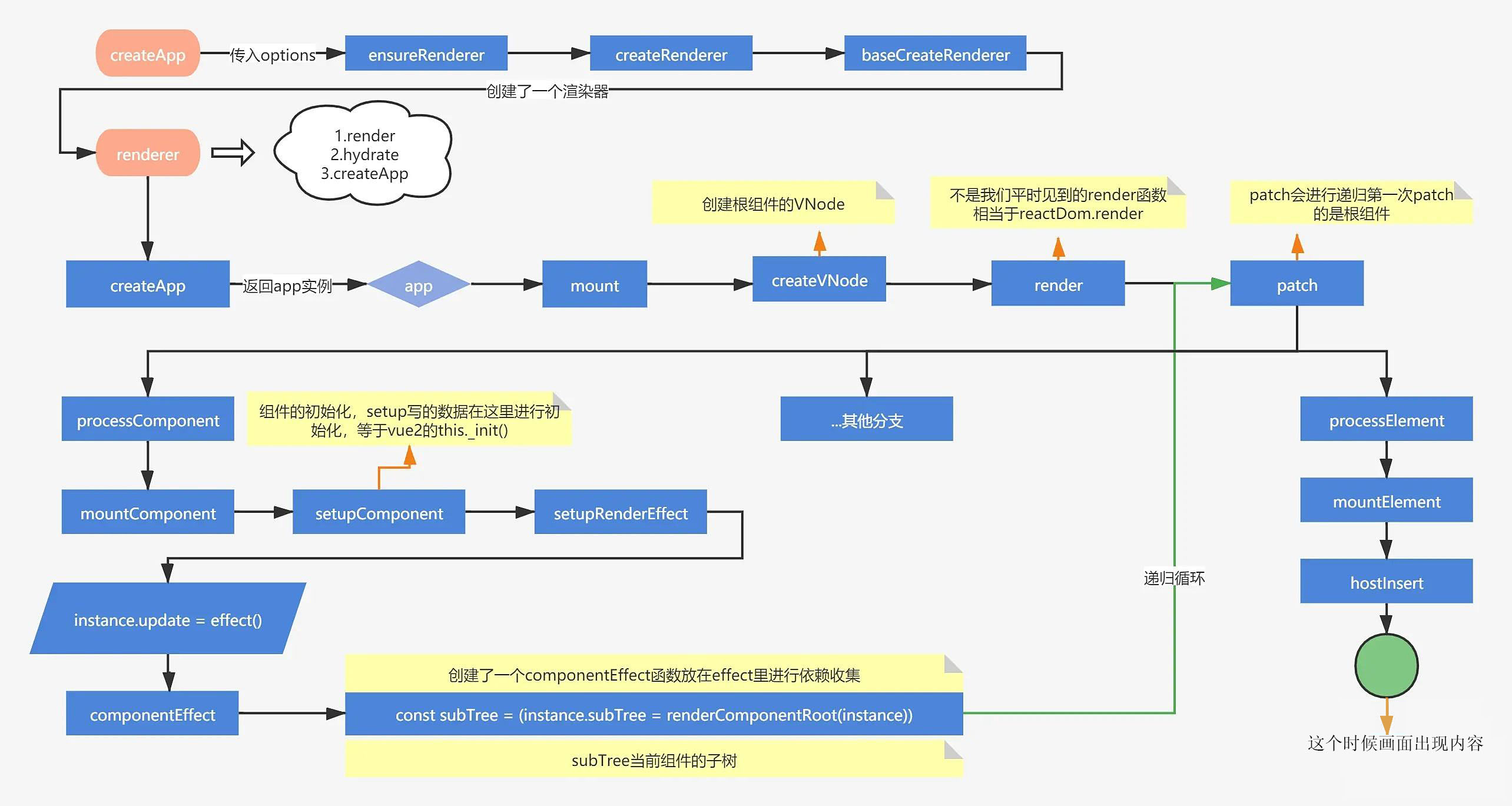

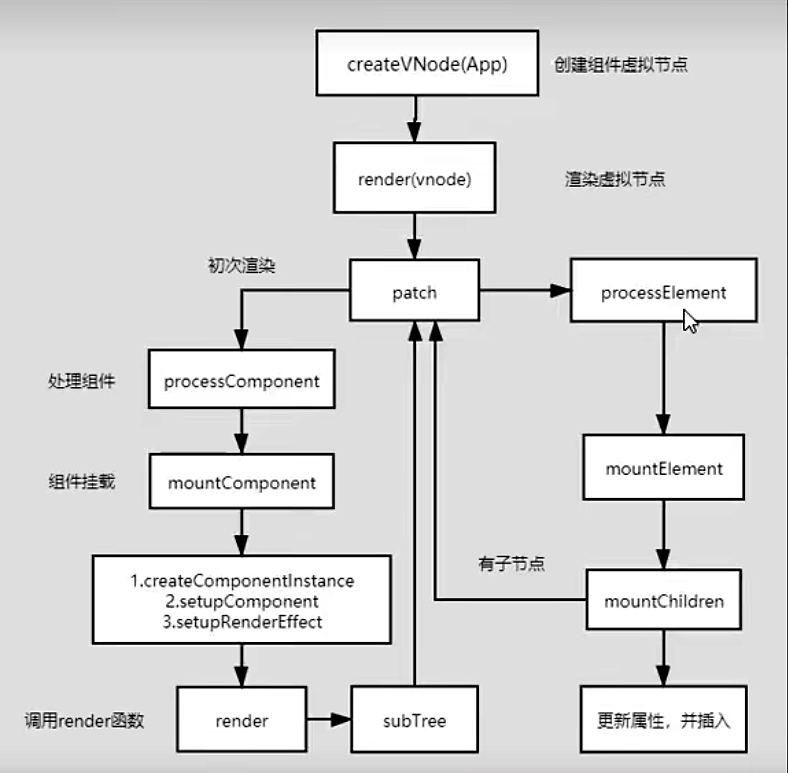

**vue3组件初始化流程图-图片来源知乎社区** **vue3组件初始化流程图-图片来源珠峰社区**

runtime介绍

vue3中将runtime模块分为runtime-core核心代码及其他平台对应的运行时。runtime-dom是解决浏览器运行时问题，此包封装了dom属性操作和节点操作的一系列接口

• runtime-core：与平台无关的运行时核心
• runtime-dom：浏览器运行时，包括dom-api、属性和事件处理等
• runtime-test：运行时测试

提示

默认引入vue就是基于runtime-core和runtime-dom

runtime-core介绍

• runtime-core不依赖任何平台(平台代码是被传入的)

renderer

//框架都是将组件转换成虚拟dom，然后通过虚拟dom生成真实dom，挂载到页面上
//虚拟dom可以做对比，多次操作可以一起更新

import { effect } from "@vue/reactivity"
import { ShapeFlags } from "@vue/shared"
import { createAppApi } from "./apiCreateApp"
import { createComponentInstance, setupComponent } from "./component"
import { queueJob } from "./scheduler"
import { normalizeVNode, Text } from "./vnode"

export function createRender(rendererOptions) {//告诉core怎么渲染
    const {
        insert: hostInsert,
        remove: hostRemove,
        patchProp: hostPatchProp,
        createElement: hostCreateElement,
        createText: hostCreateText,
        createComment: hostCreateComment,
        setText: hostSetText,
        setElementText: hostSetElementText,
        parentNode: hostParentNode,
        nextSibling: hostNextSibling,
    } = rendererOptions

    const setupRenderEffect = (instance, container) => {
        //需要创建一个effect方法 在effect中调用render，render中拿到的数据会收集这个effect，属性更新时effect会重新执行
        effect(function componentEffect() {//每个组件都有一个effect，vue3是组件级effect，数据变化重新执行对应组件的effect
            if (!instance.isMounted) {//表示初次挂载，初次渲染
                let proxyToUse = instance.proxy
                let subTree = instance.subTree = instance.render.call(proxyToUse, proxyToUse)
                //用render的返回值继续渲染
                patch(null, subTree, container)
                instance.isMounted = true
                console.log(subTree)
            } else {//更新
                const prevTree = instance.subTree
                let proxyToUse = instance.proxy
                const nextTree = instance.render.call(proxyToUse, proxyToUse)
                patch(prevTree, nextTree, container)
            }
        }, {
            scheduler: queueJob
        })
        instance.render()
    }

    const render = (vnode, container) => {
        //core的核心方法
        //根据不同的虚拟节点创建真是的元素

        //默认调用初始化流程
        patch(null, vnode, container)
    }

    const mountComponent = (initalizeVNode, container) => {
        console.log(initalizeVNode, container)
        //组件的渲染流程
        //先创建实例
        const instance = (initalizeVNode.component = createComponentInstance(initalizeVNode))
        //需要的数据解析到实例上
        setupComponent(instance)
        //创建一个effect让render函数执行
        setupRenderEffect(instance, container)
    }

    const patchProps = (oldProps, newProps, el) => {
        if (oldProps === newProps) {
            return
        }
        for (const key in newProps) {
            const prev = oldProps[key]
            const next = newProps[key]
            if (prev !== next) {
                hostPatchProp(el, key, prev, next)
            }
        }
        for (const key in oldProps) {
            if (!(key in newProps)) {
                hostPatchProp(el, key, oldProps[key], null)
            }
        }

    }

    const unmountChildren = (children) => {
        for (let i = 0; i < children.length; i++) {
            unmount(children[i])
        }
    }

    //比较两个key
    const patchKeyedChildren = (c1, c2, el) => {
        //vue3对特殊情况进行优化
        let i = 0
        let e1 = c1.length - 1
        let e2 = c2.length - 1

        //尽可能减少比对的情况

        while (i <= e1 && i <= e2) {
            const n1 = c1[i]
            const n2 = c2[i]
            if (isSameNVodeType(n1, n2)) {
                patch(n1, n2, el)
            } else {
                break
            }
            i++
        }

        while (i <= e1 && i <= e2) {
            const n1 = c1[e1]
            const n2 = c2[e2]
            if (isSameNVodeType(n1, n2)) {
                patch(n1, n2, el)
            } else {
                break
            }
            e1--
            e2--
        }

        //比较后，有一方已经完全比对完毕了

        if (i > e1) {//老的少  新的多
            if (i <= e2) {//表示有新增部分
                //想知道是向前插入还是向后插入
                const nextPos = e2 + 1
                const anchor = nextPos < c2.length ? c2[nextPos].el : null
                while (i <= e2) {
                    patch(null, c2[i], el, anchor)//只是向后追加
                    i++
                }
            }
        } else if (i > e2) {//老的多新的少
            if (i <= e1) {
                while (i <= e1) {
                    unmount(c1[i])
                    i++
                }
            } else {
                //乱序比较，需要尽可能复用，用新的元素做成一个映射表去老的里查找，一样的就复用，不一样的要不插入要不删除
                let s1 = i
                let s2 = i
                //vue3用的是新的做映射表  vue2用的是老的做映射表
                const keyToNewIndexMap = new Map()

                for (let i = s2; i <= e2; i++) {
                    const childVnode = c2[i]
                    keyToNewIndexMap.set(childVnode.key, i)
                }

                const toBePatched = e2 - s2 + 1
                const newIndexToOldIndexMap = new Array(toBePatched).fill(0)

                for (let i = s1; i <= e1; i++) {
                    const oldVnode = c1[i]
                    let newIndex = keyToNewIndexMap.get(oldVnode.key)
                    if (newIndex === undefined) {
                        unmount(oldVnode)
                    } else {
                        newIndexToOldIndexMap[newIndex - s2] = i + 1
                        patch(oldVnode, c2[newIndex], el)//patch的操作，是不是会复用元素，更新属性，比较儿子
                    }
                }

                let increasingNewIndexSequence = getSequence(newIndexToOldIndexMap)
                let j = increasingNewIndexSequence.length - 1
                console.info(increasingNewIndexSequence)

                for (let i = toBePatched - 1; i >= 0; i--) {
                    let currentIndex = i + s2//找到索引
                    let child = c2[currentIndex]//找到索引对应的项
                    let anchor = currentIndex + 1 < c2.length ? c2[currentIndex + 1].el : null
                    //第一次插入h后，h是第一个虚拟节点，同时插入后，虚拟节点会拥有真实节点

                    if (newIndexToOldIndexMap[i] == 0) {//如果自己是0说明没有被patch过
                        patch(null, child, el, anchor)
                    } else {

                        if (i == increasingNewIndexSequence[j]) {
                            j--//跳过不需要移动的物体，为了减少移动，需要这个最长子序列递增算法
                        } else {
                            hostInsert(child.el, el, anchor)//操作当前的d 以d下一个作为参照物插入
                        }
                    }
                }

                //最后就移动节点并且将新增节点插入


                //最长递增子序列
            }
        }
    }

    const patchChildren = (oldNode, newNode, el) => {
        const c1 = oldNode.children
        const c2 = newNode.children

        //老的有儿子  新的没儿子  新的有儿子老的没儿子  新老都有儿子  新老都是文本
        const prevShapeFlag = oldNode.shapeFlags
        const shapeFlag = newNode.shapeFlags
        if (shapeFlag & ShapeFlags.TEXT_CHILDREN) {//case1 现在是文本之前是数组
            //老的是n个孩子，但是新的文本
            if (prevShapeFlag & ShapeFlags.ARRAY_CHILDREN) {
                unmountChildren(c1)
            }

            //两个都是文本的情况
            if (c2 != c1) {//case2 两个都是文本
                hostSetElementText(el, c2)
            }
        } else {
            //现在是元素 上一次可能是文本或者数组
            //两个数组的比对(diff算法)*****************比较复杂
            if (prevShapeFlag & ShapeFlags.ARRAY_CHILDREN) {//上次是数组//case3 两个都是数组
                if (shapeFlag & ShapeFlags.ARRAY_CHILDREN) {//这次也是数组
                    patchKeyedChildren(c1, c2, el)
                } else {//没有孩子
                    unmountChildren(c1)
                }
            } else {
                //上一次是文本
                if (prevShapeFlag & ShapeFlags.TEXT_CHILDREN) {//case4 现在是数组之前是文本
                    hostSetElementText(el, "")
                }
                //这次是数组
                if (shapeFlag & ShapeFlags.ARRAY_CHILDREN) {
                    mountChildren(c2, el)
                }
            }
        }
    }

    const getSequence = (arr) => {
        const len = arr.length
        const result = [0]//默认第0个为参照物
        let p = arr.slice(0)//里面内容无所谓 和原本的数组相同 用来存放索引
        let start
        let end
        let middle

        for (let i = 0; i < len; i++) {
            const arrI = arr[i]
            if (arrI !== 0) {
                let resultLastIndex = result[result.length - 1]
                if (arr[resultLastIndex] < arrI) {
                    p[i] = resultLastIndex//标记当前前一个对应的索引
                    result.push(i)
                    continue
                }
            }

            //二分查找，找到比当前值大的那一个
            start = 0
            end = result.length - 1
            while (start < end) {
                middle = ((start + end) / 2) | 0
                if (arr[result[middle]] < arrI) {
                    start = middle + 1
                } else {
                    end = middle
                }//找到结果集中比当前这一项大的数

                if (arrI < arr[result[start]]) {
                    if (start > 0) {
                        p[i] = result[start - 1]//将它替换成前一个
                    }
                    result[start] = i
                }
            }
        }

        let len1 = result.length
        let last = result[len1 - 1]
        while (len1-- > 0) {//根据前驱节点一个个向前查找
            result[len1] = last
            last = p[last]
        }
        return result;
    }

    const patchElement = (oldNode, newNode, container) => {
        //元素是相同根节点
        let el = (oldNode.el = newNode.el)
        //更新属性  更新儿子
        const oldProps = oldNode.props || {}
        const newProps = newNode.props || {}

        patchProps(oldProps, newProps, el)

        patchChildren(oldNode, newNode, el)
    }

    const processComponent = (oldNode, newNode, container) => {
        if (oldNode == null) {//组件没有上次的虚拟节点
            mountComponent(newNode, container)
        } else {
            //组件更新流程
            patchElement(oldNode, newNode, container)
        }
    }

    const mountChildren = (children, container) => {
        for (let i = 0; i < children.length; i++) {
            let child = normalizeVNode(children[i])
            patch(null, child, container)
        }
    }

    const mountElement = (vnode, container, anchor = null) => {
        const { props, shapeFlags, type, children } = vnode
        let el = (vnode.el = hostCreateElement(type))
        if (props) {
            for (const key in props) {
                hostPatchProp(el, key, null, props[key])
            }
        }
        if (shapeFlags & ShapeFlags.TEXT_CHILDREN) {
            hostSetElementText(el, children)
        } else if (shapeFlags & ShapeFlags.ARRAY_CHILDREN) {
            mountChildren(children, el)
        }

        hostInsert(el, container, anchor)
    }

    const processElement = (oldNode, newNode, container, anchor) => {
        if (oldNode == null) {
            mountElement(newNode, container, anchor)
        }
    }

    const processText = (oldNode, newNode, container) => {
        if (oldNode == null) {
            hostInsert((newNode.el = hostCreateText(newNode.children)), container)
        }
    }

    const isSameNVodeType = (oldNode, newNode) => {
        return oldNode.type === newNode.type && oldNode.key === newNode.key
    }

    const unmount = (oldNode) => {
        hostRemove(oldNode.el)
    }

    const patch = (oldNode, newNode, container, anchor = null) => {
        //针对不同类型做初始化操作
        const { shapeFlags, type } = newNode

        if (oldNode && !isSameNVodeType(oldNode, newNode)) {
            anchor = hostNextSibling(oldNode.el)
            //把以前的删掉换成新的
            unmount(oldNode)
            oldNode = null//重新渲染
        }

        switch (type) {
            case Text:
                processText(oldNode, newNode, container)
                break;
            default:
                if (shapeFlags & ShapeFlags.ELEMENT) {//判断下shapeflags是否是元素
                    console.log('元素')
                    processElement(oldNode, newNode, container, anchor)
                } else if (shapeFlags & shapeFlags.STATEFUL_COMPONENT) {
                    console.log('组件')
                    processComponent(oldNode, newNode, container)
                }
        }
    }

    return {
        createApp: createAppApi(render)
    }
}

// vue3组件创建的过程
// 将组件变成虚拟节点vnode,再将vnode变成真实dom，然后插入到页面中
// render方法的作用是可以渲染一个虚拟节点，将他挂载在具体的dom元素上
// vue3执行的核心就在patch这个方法上

// 创建组件的流程
// 先创建一个instance--->初始化
// 根据用户传入的组件，拿到对应的内容，来填充这个instance这个对象
// 创建effect方法并调用render方法，数据会将对应的effect收集起来
// 拿到render方法的返回结果，再次走渲染流程->patch

// 组件渲染的顺序是先父后子，执行顺序是深度优先

// 每个组件都是一个effect函数

renderer.ts

component

//组件中所有方法

import { isFunction, isObject, ShapeFlags } from "@vue/shared"
import { PublicInstanceProxyHandlers } from "./componentPublicInstance"

export function createComponentInstance(vnode) {
    const instance = { //组件的实例
        vnode,
        type: vnode.type,
        props: {},
        atrrs: {},
        slots: {},
        ctx: null,
        setupState: {},//如果setup返回一个对象，那么这个对象作为setupState
        isMounted: false,//表示组件是否被挂载
    }
    instance.ctx = { _: instance }
    return instance
}

export function setupComponent(instance) {
    const { props, children } = instance.vnode
    //根据props解析出props和attrs
    instance.children = children//插槽的解析initSlot()
    instance.props = props//初始化initProps()

    //需要看下当前组件是不是有状态的组件，函数组件
    let isStateful = instance.vnode.shapeFlags & ShapeFlags.STATEFUL_COMPONENT
    if (isStateful) {//表示现在是一个带状态的组件
        //调用当前的setup方法，用setup返回值填充setupState和对应的render方法
        setupStatefulComponent(instance)
    }

}

function setupStatefulComponent(instance) {
    //1代理，传递给函数的参数
    instance.proxy = new Proxy(instance.ctx, PublicInstanceProxyHandlers as any)
    //2获取组件的类型，拿到组件的setup方法
    let component = instance.type
    let { setup } = component
    let setupContext = createSetupContext(instance)//instance中的props attrs slots emit expose都被提取出来
    if (setup) {
        let setupResult = setup(instance.props, setupContext)
        // component.render(instance.proxy)测试用
        handleSetupResult(instance, setupResult)
    } else {
        finishComponentSetup(instance)//完成组件的启动
    }
}

function handleSetupResult(instance, setupResult) {
    if (isFunction(setupResult)) {
        instance.render = setupResult
    } else if (isObject(setupResult)) {
        instance.setupState = setupResult
    }
    finishComponentSetup(instance)
}

function finishComponentSetup(instance) {
    let component = instance.type
    const { render } = component
    if (!instance.render) {//对template模板进行编译产生render函数
        //instance.render = render//将生成的render函数放在实例上
        if (!component.render && component.template) {
         //编译将结果赋给component.render
         //再赋给instace.render
        }
        instance.render = component.render
    }
    //对vue2.x做了兼容
    //applyOptions
}

function createSetupContext(instance) {
    return {
        attrs: instance.atrrs,
        slots: instance.slots,
        // props: instance.props,
        emit: () => { },
        expose: () => { }
    }
}

//instance 表示组件的状态，各种各样的状态
//context 是为了开发时使用
//proxy 主要是为了取值方便

component.ts

h函数

import { isArray, isObject } from "@vue/shared"
import { createVNode, isVNode } from "./vnode"

export function h(type, propsOrChildren, children) {
    let l = arguments.length//儿子节点要么是字符串要么是数组，针对的是createVNode
    if (l == 2) {//类型+属性  类型+孩子
        //如果第二个参数不是对象，那就是孩子
        //如果是数组直接作为第三个参数
        if (isObject(propsOrChildren) && !isArray(propsOrChildren)) {
            if (isVNode(propsOrChildren)) {
                return createVNode(type, null, [propsOrChildren])
            }
            return createVNode(type, propsOrChildren)

        } else {
            return createVNode(type, null, propsOrChildren)
        }
    }
    else {
        if (l > 3) {
            children = Array.prototype.slice.call(arguments, 2)
        } else if (l === 3 && isVNode(children)) {
            children = [children]
        }

        return createVNode(type, propsOrChildren, children)
    }
}

h.ts

apiCreateApp

import { createVNode } from "./vnode"

export function createAppApi(render) {
    return function createApp(rootComponent, rootProps) {//告诉core用哪个组件哪个属性创建应用
        const app = {
            _rootProps: rootProps,
            _rootComponent: rootComponent,
            _container: null,
            mount(container) {//挂载的地方
                // let vnode = {}

                //流程
                //1根据组件创建虚拟节点
                //2虚拟节点和容器获取到后，调用renderer方法

                //创建虚拟节点
                const vnode = createVNode(rootComponent, rootProps)
                console.info(vnode)
                //调用render方法
                render(vnode, container)//将vnode渲染后容器上
                app._container = container
            }
        }
        return app
    }
}

apiCreateApp.ts

componentPublicInstance

import { hasOwn } from "@vue/shared"

export const PublicInstanceProxyHandlers = {
    get({ _: instance }, key) {
        const { setupState, props, data } = instance
        if (key[0] === "$") return //不能访问$开头的变量
        if (hasOwn(setupState, key)) {
            return setupState[key];
        } else if (hasOwn(props, key)) {
            return props[key]
        } else if (hasOwn(data, key)) {
            return data[key]
        } else {
            return undefined
        }
    },
    set({ _: instance }, key, value) {
        const { setupState, props, data } = instance
        if (hasOwn(setupState, key)) {
            setupState[key] = value;
        } else if (hasOwn(props, key)) {
            props[key] = value
        } else if (hasOwn(data, key)) {
            data[key] = value
        } else {
            return false
        }

        return true
    }
}

componentPublicInstance.ts

index

export { createRender } from './renderer'
export { h } from './h'

export * from "@vue/reactivity"

index.ts

scheduler

let queue = []
export function queueJob(job) {
    if (!queue.includes(job)) {
        queue.push(job)
        queueFlush()
    }
}

let isFlushPeding = false

export function queueFlush() {
    if (!isFlushPeding) {
        isFlushPeding = true
        Promise.resolve().then(flushJobs)
    }
}

function flushJobs() {
    isFlushPeding = false
    //先刷新父再刷新子
    queue.sort((a, b) => a.id - b.id)

    for (let i = 0; i < queue.length; i++) {
        const job = queue[i]
        job()
    }

    queue.length = 0
}

scheduler.ts

vnode

//h方法就是创建虚拟节点的vnode

import { isArray, isObject, isString, ShapeFlags } from "@vue/shared"

export function isVNode(vnode) {
    return vnode.__v_isNode
}

export function createVNode(type, props, children = null) {
    //根据type来区分是元素还是对象

    //根据type来区分是元素(字符串)还是组件(对象)
    const shapeFlags = isString(type) ? ShapeFlags.ELEMENT : isObject(type) ? ShapeFlags.COMPONENT : 0


    //给虚拟节点加一个类型
    const vnode = {//一个对象来描述对应的内容，虚拟节点具有跨平台的功能
        __v_isNode: true,
        type,
        props,
        children,
        component: null,//存放组件对应的实例
        el: null,//稍后会将虚拟节点和真是节点对应起来
        key: props && props.key,//diff算法会用到key
        shapeFlags
    }
    normalizeChildren(vnode, children)
    return vnode
}

function normalizeChildren(vnode, children) {
    let type = 0
    if (children == null) {//不对儿子进行处理

    } else if (isArray(children)) {
        type = ShapeFlags.ARRAY_CHILDREN//表示儿子是个数组
    } else {
        type = ShapeFlags.TEXT_CHILDREN
    }
    vnode.shapeFlags = vnode.shapeFlags | type
}

export const Text = Symbol('Text')

export function normalizeVNode(child) {
    if (isObject(child)) return child
    return createVNode(Text, null, String(child))
}

vnode.ts

sequence

const arr = [2, 3, 1, 5, 6, 8, 7, 9, 4]

function getSequence(arr) {
    const len = arr.length
    const result = [0]//默认第0个为参照物
    let p = arr.slice(0)//里面内容无所谓 和原本的数组相同 用来存放索引
    let start
    let end
    let middle

    for (let i = 0; i < len; i++) {
        const arrI = arr[i]
        if (arrI !== 0) {
            let resultLastIndex = result[result.length - 1]
            if (arr[resultLastIndex] < arrI) {
                p[i] = resultLastIndex//标记当前前一个对应的索引
                result.push(i)
                continue
            }
        }

        //二分查找，找到比当前值大的那一个
        start = 0
        end = result.length - 1
        while (start < end) {
            middle = ((start + end) / 2) | 0
            if (arr[result[middle]] < arrI) {
                start = middle + 1
            } else {
                end = middle
            }//找到结果集中比当前这一项大的数

            if (arrI < arr[result[start]]) {
                if (start > 0) {
                    p[i] = result[start - 1]//将它替换成前一个
                }
                result[start] = i
            }
        }
    }

    let len1 = result.length
    let last = result[len1 - 1]
    while (len1-- > 0) {//根据前驱节点一个个向前查找
        result[len1] = last
        last = p[last]
    }
    return result;
}

console.log(getSequence(arr))

sequence.ts

runtime-dom介绍

• 需要涵盖dom操作api，属性操作api，事件操作api，并将这些api传入到runtime-core中运行
• 我们在渲染页面的时候进行的节点操作的一系列方法

index

//这个包的核心就是提供dom api的，操作节点、操作属性的更新
//1节点操作无非就是增删改查
//2属性操作无非就是样式、类、事件、普通事件、其他属性的增删改

import { extend } from "@vue/shared";
import { nodePos } from "./nodeOps";
import { patchProp } from "./patchProp";
import { createRender } from "@vue/runtime-core"

//渲染时用到的所有方法
export const rendererOptions = extend({ patchProp }, nodePos)

// vue-runtime-core里提供了核心的渲染方法，用来处理渲染，他会使用runtime-dom中的api进行渲染
export function createApp(rootComponent, rootProps = null) {
    const app: any = createRender(rendererOptions).createApp(rootComponent, rootProps)
    let { mount } = app
    app.mount = function (container) {
        container = document.querySelector(container)
        container.innerHTML = ''
        //将组件渲染成dom元素进行挂载
        mount(container)
    }
    return app
}

export * from '@vue/runtime-core'

index.ts

nodeOps

export const nodePos = {
    //createElement，不同的平台创建元素的方式不同

    //元素
    createElement: (tagName) => document.createElement(tagName),//增加
    remove: (child) => {//删除
        const parent = child.parentNode
        if (parent) {
            parent.removeChild(child)
        }
    },
    insert: (child, parent, anchor = null) => {
        parent.insertBefore(child, anchor)//如果anchor为空，相当于appendChild
    },
    querySelector: (selector) => document.querySelector(selector),//查询
    setElementText: (el, text) => el.textContent = text,//设置文本内容
    nextSibling: (node) => node.nextSibling,

    //文本操作，创建文本
    createText: (text) => document.createTextNode(text),//创建文本
    setText: (node, text) => node.nodeValue = text,//给节点设置文本
}

nodeOps.ts

patchProp

//这里面针对是一系列属性操作

import { patchAttr } from "./modules/attr"
import { patchClass } from "./modules/class"
import { patchEvents } from "./modules/events"
import { patchStyle } from "./modules/style"

export const patchProp = (el, key, preValue, nextValue) => {
    switch (key) {
        case 'class':
            patchClass(el, nextValue)
            break
        case 'style':
            patchStyle(el, preValue, nextValue)
            break
        default:
            if (/^on[^a-z]/.test(key)) {
                patchEvents(el, key, nextValue)
            } else {
                patchAttr(el, key, nextValue)
            }
            break
    }
}

patchProp.ts
